Hot Plate 1000-2

Ems1000-2-retouched

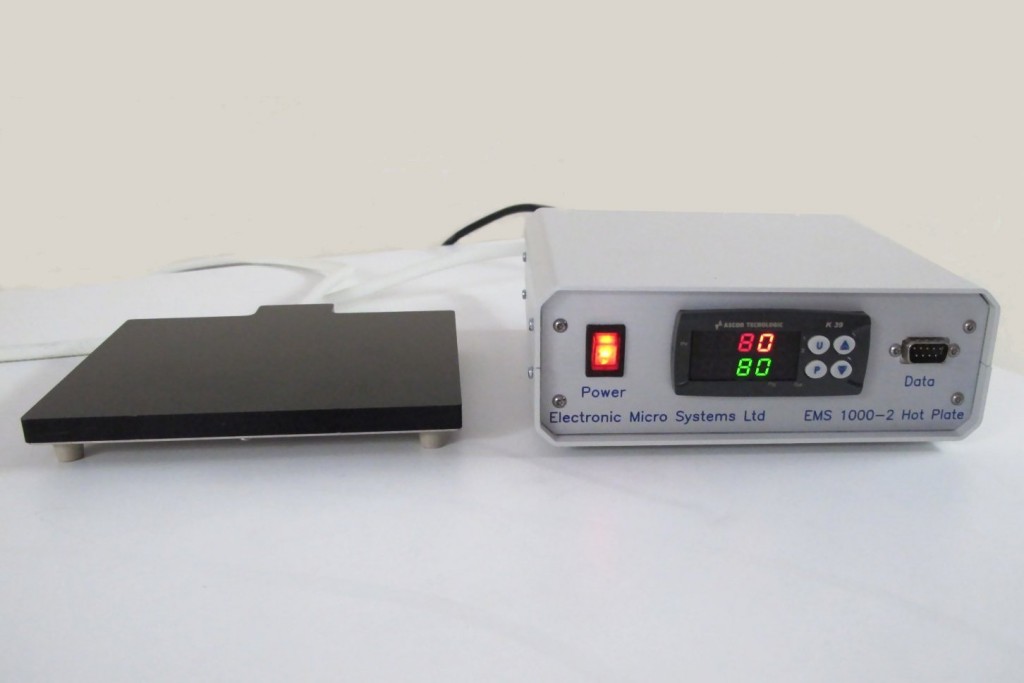

The EMS Low Profile Precision Electronic Hot Plate Model 1000-2 provides an extremely accurate means of providing even temperatures across a surface.  This compact unit provides the sophisticated control options required by the most demanding of applications, yet it is simple to use, visually appealing and competitively priced.

Features:

  • Temperatures from 50°C to 150°C
  • Accurate to ±1% across working surface
  • Vacuum ports can be added to ensure intimate contact between substrate and hot plate (not fitted as standard
  • Substrate size from 10 mm2 to 100 mm2
  • PID Temperature Controller with digital readout
  • User settable power limit
  • Autotune of PID values makes unit simple to use
  • High visibility 4 digit LED display shows temperature in °C or °F.
  • Suitable for working under microscopes and magnifiers

Applications:

  • Preheat for ceramic substrates
  • Curing of Epoxy
  • Any work requiring a precise temperature

Requirements:

  • Power 110V or 240V at 2 amps
  • Dimensions: 150 x 150 x < 25mm
